Peeling Dies

Description

Tungsten carbide peeling dies have different specifications, such as round, square, hexagonal, deltoid and other custom shapes. They are broadly used to peel off the copper rods and tubes as well as other kinds of metal tubes and bars. The main characteristic of the tungsten carbide peeling mould is wear-resisting ability, which is dozens of times of the common steel moulds. In order to meet different needs of various customers, our tungsten carbide peeling dies adopt superior quality original tungsten steel as the mold core, with the characteristics of high hardness, good heat conducting property, small coefficient of friction, strong resistance to corrosion and high temperature resistance. Tungsten carbide peeling dies are suitable for drawing all kinds of metal wires, steel tubes, copper tubes and ferrous metal. Additionally, our tungsten carbide peeling mould can be used for drawing large size wires and the situations with poor drawing conditions.

Range of Size
Tungsten carbide peeling dies can be manufactured on the basis of customer’s drawings.

Specifications

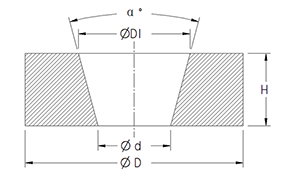

New Type Old Type Dimension (mm) Reference Dimension (mm)
D H d D1 A
LP-13x5x1 Φ13×Φ1×5-B7 13 5 1.0 7 60
LP-15x6x4 Φ15×Φ4×6-B10 15 6 4.0 10 60
LP-18x25x5 Φ18×Φ8/5×25-11 18 25 5.0 8 11
LP-20x25x6.5 Φ20×Φ10/6.5×25-11 20 25 6.5 10 11
LP-20x6x7 Φ20×Φ7×6-B14 20 6 7.0 14 60
LP-22x6x9 Φ22×Φ9×6-B15 22 6 9.0 15 60
LP-25x7x12 Φ25×Φ18/12×7 25 7 12.0 18 50
LP-20x6x8 Φ20×Φ8/13×6 20 6 8.0 13 53
LP-22x6x10 Φ22×Φ10-15×6 22 6 10.0 15 53
LP-22x25x8 Φ22×Φ12/8×25-11 22 25 8.0 12 11
LP-25x25x10 Φ25×Φ14/10×25-11 25 25 10.0 14 11
LP-30x8x14 Φ30×Φ23/14×8 30 8 14.0 23 62
LP-35x8x19 Φ35×Φ27/19×8 35 8 19.0 27 57
LP-32.5x10x11.5 Φ32.5×Φ11.5×10 32.5 10 11.5 16 24
LP-32.5x10x12 Φ32.5×Φ12×10 32.5 10 12.0 16.5 24
LP-32.5x10x15 Φ32.5×Φ15×10 32.5 10 15.0 19.5 24

Note

Please inform us the material quality of the drawn wires.

Delivery

The production time of the tungsten carbide peeling dies is 15 days with moulds, if there is no mould, it needs 25 days.

Packaging

Our tungsten carbide peeling moulds adopt standard packaging. We choose fiber board case for sea transportation and carton box for air transportation.

Payment

You can pay the tungsten carbide peeling dies by T/T and L/C.
